Unidirectional Carbon Fiber Properties - Horse Construction

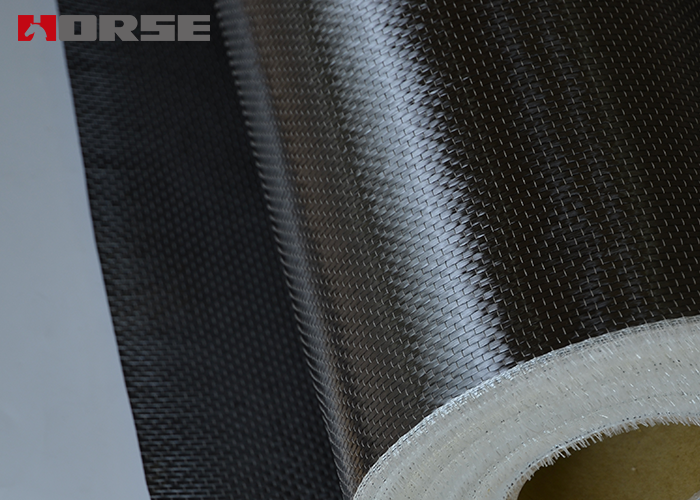

horse construction unidirectional carbon fiber

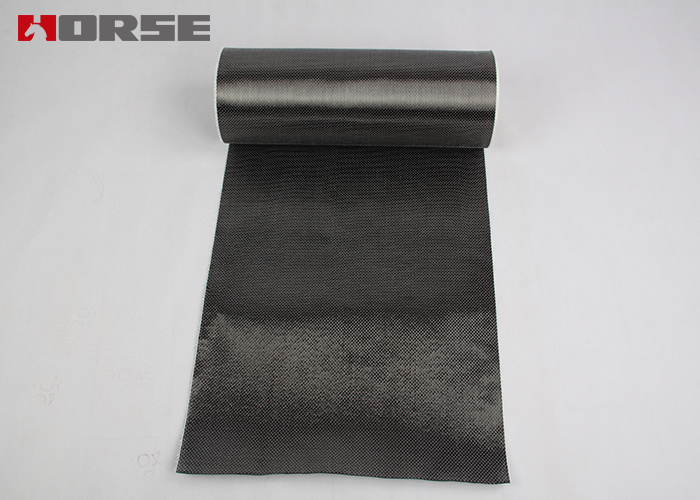

horse construction unidirectional carbon fiber


horse construction unidirectional carbon fiber


horse construction unidirectional carbon fiber




Product features of unidirectional carbon fiber cloth

High strength, low density, thin thickness, and basically do not increase the weight and cross-sectional size of the reinforcement member. It has a wide range of applications, and is widely used in the reinforcement and repair of various structural types and structural shapes such as buildings, bridges and tunnels, as well as seismic reinforcement and structural reinforcement of nodes. The construction is convenient, no large machinery and equipment, no wet work, no hot fire, no on-site fixed facilities, the implementation of state workers occupies less space, and the construction work efficiency is high. High durability, because it will not rust, it is very suitable for use in high acid, alkali, salt and atmospheric corrosion environments.



Unidirectional Carbon Fiber Properties - Horse Construction



Unidirectional Carbon Fiber Typical Data


Storage Condition
Store dry at 40°-95° F（4° -35°）
Shelf Life50 years
ColorBlack
Primary Fiber Direction0°（unidirectional carbon fiber fabric）

Arear Weight

HM-20 unidirectional carbon fiber fabric200g/㎡ (5.84 oz./sq.yd.)
HM-23 unidirectional carbon fiber fabric230g/㎡ (6.72 oz./sq.yd.)
HM-30 unidirectional carbon fiber fabric300g/㎡ (8.76 oz./sq.yd.)
HM-45 unidirectional carbon fiber fabric450g/㎡ (13.14 oz./sq.yd.)
HM-53 unidirectional carbon fiber fabric530g/㎡ (15.48 oz./sq.yd.)
HM-60 unidirectional carbon fiber fabric600g/㎡ (17.52 oz./sq.yd.)



Unidirectional Carbon Fiber Typical Fiber Properties


Dry Fiber Typical Properties
Standrad Value of Tensile Strength4900MPa
Tensile Elastic Modulus234500MPa
Elongation1.7%
Laminate Fiber Typical Properties
Standrad Value of Tensile Strength3800MPa
Tensile Elastic Modulus234500MPa
Elongation1.7%
With Concrete
Concrete Damaged: ≥2.5MPa
Densiy1.8g/cc(0.065lbs.in3）
Norminal Fiber ThicknessHM-20 unidirectional carbon fiber fabric0.111mm(0.0044in.)
HM-23 unidirectional carbon fiber fabric0.128mm(0.0050in.)
HM-30 unidirectional carbon fiber fabric0.167mm(0.0065in.)
HM-45 unidirectional carbon fiber fabric0.251mm(0.0097in.)
HM-53unidirectional  carbon fiber fabric0.295mm(0.0114in.)
HM-60 unidirectional carbon fiber fabric0.333mm(0.0130in.)
